Category: | Swing Motor | Machine model: | 345GC 365BL 374FL 385B 390FL |
---|---|---|---|
Application: | Excavator | Product name: | Splined Bushing |
Part number: | 158-8967 1588967 | Packing: | Standard Export Carton |
برجسته کردن: | Splined bushing for CAT excavator,Excavator swing motor bushing,CAT 345GC swing motor part,Excavator swing motor bushing,CAT 345GC swing motor part |

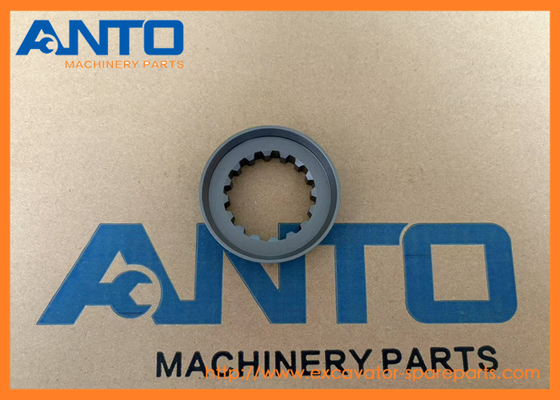

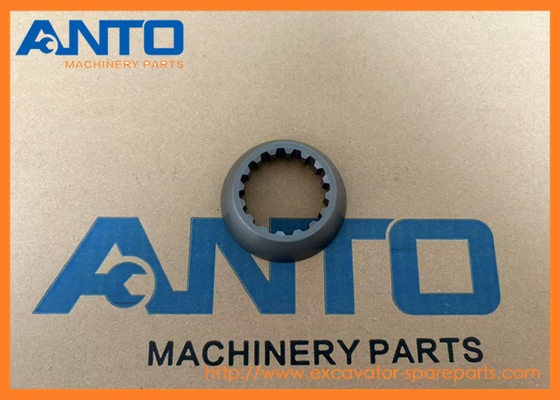

Name | Splined Bushing |
Parts No | 158-8967 1588967 |
Machine Model | 345GC 365BL 374FL 385B 390FL |
Category | Swing Motor |
Lead time | 1-3 DAYS |
Quality | Brand new, OEM quality |
MOQ | 1 PCS |
Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
Packing | As request or standard packing |
Function
1.Wear Resistance and Protection: It can be installed between mechanical components to reduce direct friction between parts. For example, when installed between a shaft and a bearing seat, it can prevent the shaft and the hole from wearing out due to long - term contact, thus prolonging the service life of the components and maintaining the accuracy of the equipment.
2.Vibration and Noise Reduction: The bushing has the ability to absorb and disperse vibration energy. During the operation of the equipment, it can reduce the transmission of vibration, thereby reducing the overall vibration and noise level of the equipment, improving the working environment, and also being beneficial to reducing the fatigue damage of other components caused by vibration.
EXCAVATOR 365B 365B II 365B L 365C 365C L 365C L MH 374D L 374F L 385B 385C 385C FS 385C L 385C L MH 390D 390D L 390F L
FRONT SHOVEL 385C 5090B
MOBILE HYD POWER UNIT 365C L 385C 385C L C.ater.pillar.,
2081959 BUSHING |
321C, 322C, 325C, 330C, 330C FM, 330C L, 385B |
2285620 BUSHING |
345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 365B, 365C, W345C MH |
2357527 BUSHING |
325D, 325D FM, 325D FM LL, 325D L, 328D LCR, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 365B, 365C, W345C MH |
4I6897 BUSHING |
324D, 330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E L, 336E LN, 336F L, 340D L, 340D2 L, 345B II, 345B II MH, 345B L, 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 34... |
4I6718 BUSHING |
345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L, 350, 365B, 365B II, 365B L, 365C, 365C L, 374D L, 374F L, 385C, P115, VPC-30 |
1531728 BUSHING |
365B, 365B II, 365B L, 365C, 385B, S365B, S365C, S465, VHS-60/3 |
2453805 BUSHING-TRACK |
345C, 345C L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L |
4I1520 BUSHING |
345B II, 345B L, 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L, 350, 365B, 365B II, 365B L, 365C, 365C L, 374D L, 374F L, 385C |
2343748 BUSHING |
365B, 365B II, 365C, 365C L, 374D L, 374F L, 385C, 390D, 390D L, 390F L |
2343749 BUSHING |
365B, 365B II, 365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C L, 390D, 390D L, 390F L |
Pos. | Part No | Qty | Parts name | Comments |
1 | 158-8976 | [1] | RETAINER | |
2 | 295-9432 | [1] | BEARING AS | |
3 | 095-1716 | [1] | SEAL-O-RING | |
4 | 247-8719 | [2] | SPACER (50X64X3-MM THK) | |
5 | 8T-4241 | [2] | RING-RETAINING | |
6 | 158-8967 | [1] | BUSHING | |
7 | 158-8970 | [1] | SPACER (47X58X1.5-MM THK) | |
8 | 158-8969 | [12] | PIN | |
9 | 242-6922 | [1] | PLATE | |
10 | 158-8973 | [1] | PLATE | |
11 | 295-9689 | [1] | PISTON AS | |
12 | 295-9433 | [1] | BARREL | |
13 | 158-8981 | [3] | PLATE-FRICTION | |
14 | 158-8982 | [4] | PLATE-SEPARATOR | |
15 | 7Y-4277 | [1] | SEAL-O-RING | |
16 | 8F-5900 | [1] | SEAL-O-RING | |
17 | 185-0325 | [1] | PISTON-BRAKE | |
18 | 158-8978 | [1] | SEAL-O-RING | |
19 | 158-8971 | [1] | SPACER (47X61X3-MM THK) | |
20 | 566-7885 | [1] | HEAD GP-MOTOR | |
21 | 110-5525 | [2] | PLUG | |
22 | 3J-1907 | [2] | SEAL-O-RING | |
23 | 8T-9598 | [1] | RING-RETAINING | |
24 | 4I-5850 | [1] | RING | |
25 | 7Y-4269 | [1] | BEARING AS-ROLLER | |
26 | 158-8965 | [1] | SPACER (50X61X3-MM THK) | |
27 | 234-4543 | [1] | PLATE | |
28 | 123-2139 | [20] | SPRING | |
29 | 095-1573 | [2] | SEAL-O-RING | |
30 | 566-7883 | [1] | PLATE | |
31 | 8T-8442 M | [3] | BOLT-SOCKET HEAD (M6X1X30-MM) | |
32 | 8T-6759 | [1] | PLUG-PIPE | |
33 | 158-8968 | [1] | SPRING | |
34 | 234-4542 | [1] | BODY | |
35 | 095-0946 | [1] | RING-RETAINING | |
36 | 158-8979 | [1] | SEAL-OIL | |
37 | 158-8964 | [1] | SHAFT | |
38 | 170-9996 | [2] | PLUG | |
39 | 161-7611 M | [4] | BOLT-SOCKET HEAD (M22X2.5X45-MM) | |
40 | 095-1600 | [2] | SEAL-O-RING | |
41 | 170-9986 | [2] | SPRING | |
42 | 170-9985 | [2] | VALVE-PISTON | |
M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
