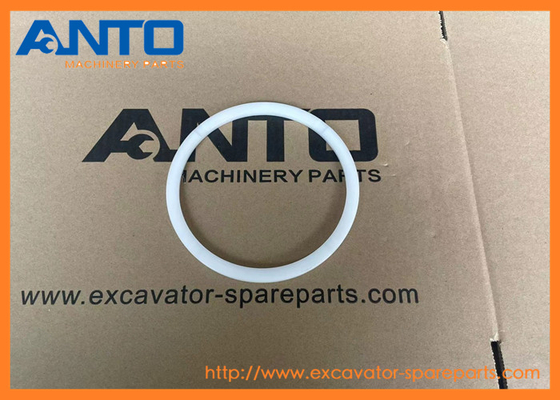

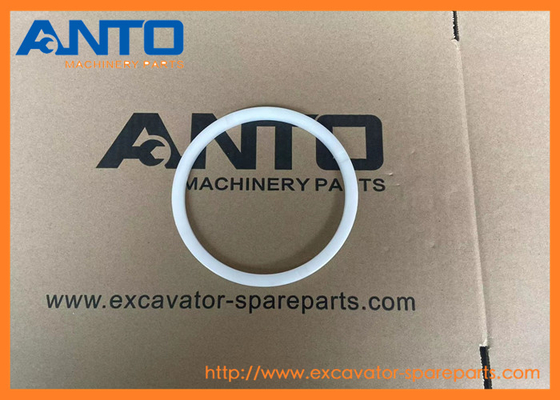

XKAQ00208 XKAQ-00208 Thrust Ring Excavator Final Drive For HYUNDAI R110-7 R110-7A

تصویر بزرگ : XKAQ00208 XKAQ-00208 Thrust Ring Excavator Final Drive For HYUNDAI R110-7 R110-7A

جزئیات محصول:

Place of Origin:	China
نام تجاری:	OEM
Model Number:	XKAQ00208 XKAQ-00208

پرداخت:

Minimum Order Quantity:	1 PCS
قیمت:	USD 4.5/PCS
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100-2000

مخاطب

توضیحات محصول جزئیات

Category:	HYUNDAI Excavator Final Drive	Parts name:	Thrust Ring
Parts number:	XKAQ00208 XKAQ-00208	Models:	R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7
Lead time:	Stock for soon delivery	Warranty:	6/12 Months
برجسته کردن:	HYUNDAI R110-7 final drive thrust ring,excavator final drive thrust ring,XKAQ00208 final drive for HYUNDAI , excavator final drive thrust ring , XKAQ00208 final drive for HYUNDAI

XKAQ00208 XKAQ-00208 Thrust Ring Excavator Final Drive For HYUNDAI R110-7 R110-7A

Specification

spare parts name	Thrust Ring
Equipment Model	R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7
Parts Category	HYUNDAI Excavator Final Drive
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Function & Design

1.Purpose: Maintains axial clearance and preload within the planetary gearset of the reducer.

2.Role: Ensures gears and bearings stay correctly spaced, preventing axial movement, gear misalignment, excessive wear, and vibration—critical for smooth travel operations.

3.Material and Structure: Machined from hardened steel to precise specs for thickness and diameter, capable of handling heavy rotational loads and pressure.

Compatible models

7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7

More other ring parts applicable for HYUNDAI machine

3920691 RING-RETAINING

100D-7, 110D-7A, 110D-7E, 110D-9, 35D-9, 50D-9, 80D-9, HDF35A-2, HDF50A, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL730TM7, HL730TM7A, HL740-7, HL740-7A, HL740...

S601-030004 RING-RETAINING

110D-7E, 14BRJ-9, 15BRP-7, 15BRP-9, 15D, 15D-9, 15D-9S, 15G, 15G-7A, 15G-7M, 15L, 15L-7A, 15L-7M, 15LC, 15LC-7A, 15LC-7M, 20BRJ-9, 20D-7, 20D-7E, 20DF, 20DT, 20G, 20L, 22D-9, 22D-9E, 22D-9T, 25G-7A, 2...

3920692 RING-RETAINER

180DE, 250D-9, 250DE, HL760-9S, HL770-7, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R300LC9S, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R360LC7, R360LC7A, R360LC9, R...

S602-062004 RING-RETAINING

15D-9, 15D-9S, 16B, 16B-9, 16B-9F, 20D-7, 20D-7E, 20DF, 20DT, 20G, 20L, 22D-9, 22D-9E, 22D-9S, 22D-9T, 25G-7A, 25G-7M, 25GC-7A, 25GC-7M, 25L-7A, 25L-7M, 25LC-7A, 25LC-7M, 25LF, 35D-7, 35DF, 35DS-7, 35...

3904849 RING-RETAINING

33HDLL, 42HDLL, H70, H80, HDF35A-2, HDF50A, HL17C, HL25C, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL750, H...

3901706 RING-RETAINING

33HDLL, H70, H80, HL17C, HL720-3C, HL7303C, HL730TM3C, HL740-3, HL740-3ATM, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, R130LC, R130LC3, R130W, R130W3, R140LC-7, R140LC9S, R140W7, R140W9S, R160LC...

XKAY-00398 RING-SNAP

R55-7, R55-7A, R55-9, R55-9A, R55-9S, R60CR-9, R60CR-9A, R80-7, R80-7A, R80CR-9, R80CR-9A, RC60-7, RD80-7

31YC-25080 RING-CUSHION

R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S

31YC-25070 RING-CUSHION

R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S

Y310-090200 RING-WEAR

R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S

XJDD-01312 RING-RETAINING

R80CR-9, R80CR-9A

XJDD-01320 RING-BACK UP

R80CR-9, R80CR-9A

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
*.	31Q5-42051	[1]	TRAVEL MOTOR ASSY
*-2.	31Q6-40121	[1]	T/REDUCTION GEAR
1	XKAQ-00217	[1]	HOUSING
2	XKAQ-00986	[2]	BEARING-MAIN
3	XKAQ-00219	[1]	SEAL-FLOATING
4	XKAQ-00220	[1]	SHIM
5	XKAQ-00221	[1]	RETAINER
6	XKAQ-00222	[12]	BOLT-HEX
7	XKAQ-00223	[2]	PIN-PARALLEL
8	XKAQ-00224	[1]	GEAR-RING
9	XKAQ-00225	[1]	COUPLING
10	XKAQ-00226	[1]	CARRIER 2 ASSY
10-1.	XKAQ-00227	[1]	CARRIER 2
10-2.	XKAQ-00228	[4]	GEAR-PLANET 2
10-3.	XKAQ-00229	[8]	BEARING-NEEDLE 2
10-4.	XKAQ-00230	[8]	WASHER-THRUST
10-5.	XKAQ-00231	[4]	PIN 2
10-6.	XKAQ-00232	[4]	PIN-SPRING
10-7.	XKAQ-00208	[2]	RING-THRUST
11	XKAQ-00233	[1]	CARRIER ASSY 1
11-1.	XKAQ-00234	[1]	CARRIER 1
11-2.	XKAQ-00235	[1]	GEAR-SUN 2
11-3.	XKAQ-00236	[1]	RING-RETAINING
11-4.	XKAQ-00237	[3]	GEAR-PLANET 1
11-5.	XKAQ-00238	[3]	BEARNG-NEEDLE 1
11-6.	XKAQ-00239	[6]	WASHER-THRUST
11-7.	XKAQ-00240	[3]	PIN 1
11-8.	XKAQ-00241	[3]	PIN-SPRING
11-9.	XKAQ-00655	[3]	PIN-SPRING
12	XKAQ-00242	[1]	GEAR-SUN 1
13	XKAQ-00243	[1]	COVER
14	XKAQ-00214	[1]	PAD
15	XKAQ-00244	[20]	BOLT-SOCKET
16	XKAQ-00245	[2]	SCREW-HEX SOCKET
17	XKAQ-00246	[3]	PLUG-HYDRAULIC
18	XKAQ-00247	[3]	O-RING
19	XKAQ-00989	[1]	NAME PLATE

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
