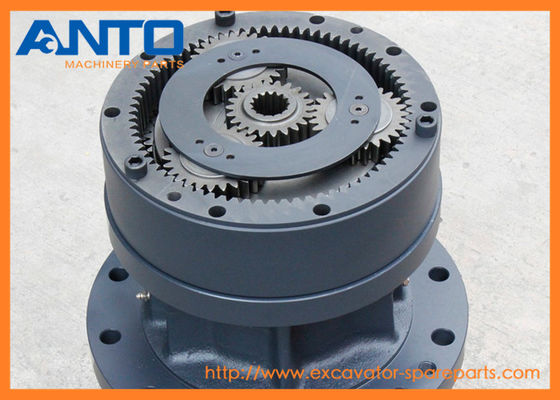

- VOE14540719 14540719 Swing Gearbox Excavator Spare Parts Fit For EC160C EC170D EC180C
| Name |
Swing Gearbox |
| Parts No |
VOE14540719 14540719 |
| Machine Model |
EC160C EC160D EC160E EC170D EC180C EC180D EC180E |
| Category |
Swing Motor With Mounting Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
1.Torque Multiplication: Reduces the high rotational speed of the swing hydraulic motor (typically 1,500–2,500 RPM) while amplifying torque—essential for moving the heavy upper structure (often 10–15 tons) smoothly.
2.Speed Control: Enables precise, variable swing speeds (from slow, controlled positioning to faster rotation) via the operator’s joystick, matching task demands (e.g., delicate pipe placement vs. rapid repositioning).
3.Load Stabilization: Integrates a multi-disc friction clutch (or brake) to prevent "drifting" of the upper structure when idle, even on sloped terrain, and to absorb shock during sudden stops.
EXCAVATOR EC160C EC160D EC160E EC170D EC180C EC180D EC180E Vo.lvo.
- More other swing gear parts fit for V O L V O machine
| VOE14563342 Swing gear |
| EC160B, EC160C, EC180B, EC180C, EW160C |
| |
| VOE14538545 Swing motor |
| EC160C, EC160D, EC160E, EC170D, EC180C, EC180D, EC180E |
| |
| VOE14577176 Swing gear |
| EC160B, EC160C, EC160D, EC180B, EC180C, EC180D, EW160C |
| |
| VOE14647522 Swing gear |
| EC160E, EC170D, EC180E |
| |
| VOE14563342 Swing gear |
| EC160B, EC160C, EC180B, EC180C, EW160C |
| |
| VOE14541030 Swing gearbox |
| EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, PL4608, PL4611, PL4809D, PL4809E |
| |
| VOE14559205 Swing gear |
| EC700B, EC700BHR, EC700C, EC700CHR, EC750D, EC750E |
| |
| VOE14626918 Swing Motor |
| EW230C |
| |
| VOE14639963 Swing motor |
| EC55B, EC55D, EC60D |
| |
| VOE14532628 Swing motor |
| EC55B, EW55B |
| |
| VOE14541069 Swing gearbox |
| EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC235C, EC235D, FC2121C, FC2421C |
| |
| VOE14655583 Swing gear |
| PL3005D, PL3005E |
| |
| VOE14541064 Swing gearbox |
| EC135B, EC140B, EW145B |
| |
| VOE14563340 Swing gear |
| EC135B, EC140C, ECR145C, EW140C, EW145B |
| |
| VOE14552871 Swing gearbox |
| ECR235C, ECR235D, ECR235E |
| |
| VOE14570794 Swing gear |
| EC290B, EC290C, EC300D, ECR305C, FC3329C, PL3005D |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14540719 |
[1] |
Swing gearbox |
S/N -230047 |
| |
VOE14724034 |
[1] |
Swing gearbox |
S/N 230048- |
| 1 |
VOE14515058 |
[1] |
Shaft |
|
| 2 |
VOE14515059 |
[1] |
Collar |
|
| 3 |
VOE14515060 |
[1] |
Ring |
|
| 4 |
VOE14515061 |
[1] |
Bearing |
|
| 5 |
VOE14515063 |
[1] |
Seal |
|
| 6 |
VOE14516440 |
[1] |
Bearing |
|
| 7 |
VOE14515067 |
[1] |
Planet carrier |
No.1 |
| 8 |
VOE14515068 |
[1] |
Carrier |
|
| 9 |
VOE14515069 |
[3] |
Bearing spindle |
|
| 10 |
VOE14515071 |
[3] |
Bearing |
|
| 11 |
VOE14515072 |
[3] |
Gear |
|
| 12 |
SA7114-32620 |
[3] |
Thrust washer |
|
| 13 |
SA9325-06012 |
[3] |
Spring pin |
|
| 14 |
SA9541-01032 |
[3] |
Retaining ring |
|
| 15 |
VOE14515070 |
[3] |
Washer |
|
| 16 |
VOE14515066 |
[1] |
Gear |
|
| 17 |
VOE14588467 |
[1] |
Gear |
|
| 18 |
SA7118-27310 |
[1] |
Gear |
|
| 19 |
SA1036-00120 |
[1] |
Thrust washer |
|
| 20 |
VOE14515064 |
[1] |
Planet carrier |
No.2 |
| 21 |
SA7118-27241 |
[1] |
Planet carrier |
|
| 22 |
VOE14515065 |
[4] |
Gear |
|
| 23 |
SA7118-23240 |
[4] |
Pin |
|
| 24 |
SA7118-23250 |
[4] |
Bushing |
|
| 25 |
SA7147-00150 |
[8] |
Thrust washer |
|
| 26 |
SA9325-06012 |
[4] |
Spring pin |
|
| 27 |
SA9541-01085 |
[1] |
Retaining ring |
|
| 28 |
SA9415-43012 |
[1] |
Plug |
|
| 29 |
VOE949329 |
[1] |
Gasket |
|
| 30 |
VOE14722461 |
[1] |
Draining valve |
|
| 31 |
VOE14540597 |
[1] |
Pipe |
|
| 32 |
SA9324-21212 |
[2] |
Pin |
|
| 33 |
VOE984358 |
[10] |
Hex. socket screw |
|
| 34 |
VOE914167 |
[1] |
Lubricating nipple |
|
| 35 |
VOE14549714 |
[1] |
Case |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
